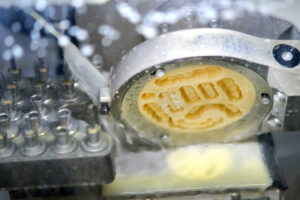

EDM recast removal strips away the thin, brittle layer of resolidified metal that electrical discharge machining leaves on a part. Anaheim CA manufacturers produce molds, dies, and precision components, and Extrude Hone AFM uses abrasive flow machining (AFM) to remove that layer evenly from them. AFM also reaches holes, slots, and internal passages that hand polishing cannot.
EDM is one of the most accurate ways to cut hardened metals and complex shapes. It also leaves a surface condition that can shorten part life if it is not addressed. Here is what Anaheim shops should know.
What Is the EDM Recast Layer?
During EDM, electrical sparks melt and vaporize tiny amounts of metal. Some of that molten material does not flush away. It cools and hardens back onto the surface, forming the recast layer, sometimes called the "white layer."
Recast is usually only a few thousandths of an inch deep. Its structure is quite different from the base metal underneath it.
Why Does the Recast Layer Need to Be Removed?
Recast is harder and more brittle than the surrounding material, and it often hides defects. Leaving it in place can lead to:
- Microcracks that can grow under load and cause fatigue failure
- Residual tensile stress that weakens critical features
- Rough, uneven surfaces that hurt part release in molds and dies
- Inconsistent flow through EDM-drilled holes and passages
- Early wear on tooling that runs thousands of cycles
For aerospace, medical, and high-volume tooling work, removing recast is often a specification requirement rather than an option.
How Does Abrasive Flow Machining Remove EDM Recast?
AFM pushes a thick, putty-like abrasive media back and forth through or across a part's surfaces under controlled pressure. Custom tooling directs the media exactly where material needs to come off. The media acts like a flexible file that takes the shape of the passage it moves through.
This approach has clear advantages for recast removal:
- It removes material uniformly, even along long or curved passages
- It reaches internal features that brushes, stones, and hand tools cannot
- It can process many holes or cavities at the same time
- Results are repeatable from part to part and batch to batch
- It improves surface finish and can add controlled edge radiusing in the same step
Because the process is controlled by media type, pressure, and cycle count, Extrude Hone AFM can remove the recast layer without taking off more material than a design allows.
Which Parts Benefit Most From Recast Removal?
Anaheim manufacturers often send us:
- Extrusion dies with EDM-cut profiles
- Injection mold cavities and cores
- Wire EDM slots and small-diameter openings
- Fuel injector nozzles and spray holes
- Aerospace and medical components with EDM-drilled features
If a part was shaped by EDM and it will see heat, pressure, flow, or repeated cycles, recast removal is worth a close look.
Why Do Anaheim Manufacturers Choose Extrude Hone AFM?
Extrude Hone AFM has been developing abrasive flow machining applications since 1971. Our experience spans aerospace, automotive, medical, hydraulics, and tool and die work. We are ISO 9001:2015 certified and an ITAR registrant, so we can support work with strict quality and compliance requirements.Anaheim's manufacturing corridor serves demanding industries. We work with local shops to design tooling and process parameters around each part's geometry and tolerances.
Frequently Asked Questions
Does AFM change part dimensions?
AFM removes a small, controlled amount of material. Process settings are matched to the recast depth and your allowable tolerance.
Can AFM remove recast inside blind or intersecting passages?
In many cases, yes. Tooling can be designed to guide media through complex or intersecting internal features.
Get EDM Recast Removal for Your Anaheim CA Parts
If recast is affecting the life, finish, or flow of your EDM-machined parts, Extrude Hone AFM can help. Call (562) 531-2976 to talk about your application or request a quote for your parts.
